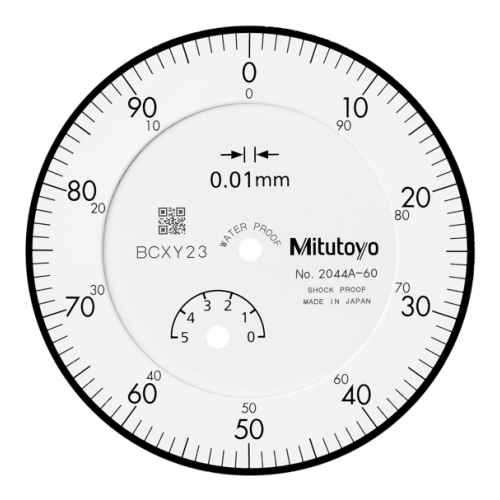

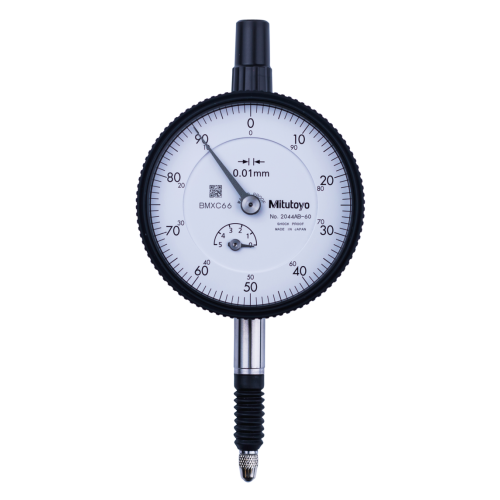

Dial Gauge, Lug Back, ISO Type IP64, 5mm, 0,01mm | 2044A-60
Описание
Standard Type, 5 mm Range, 0,01 mm GraduationThis is a standard dial indicator. It offers you the following benefits:Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
A: 47,2 mm
B: 70 mm
C: 57 mm
D: 18,1 mm
E: 20 mm
F: 12,3 mm
G: 29,2 mm
H: 52 mm
I: 7.6 mm
A: 47,2 mm
B: 70 mm
C: 57 mm
D: 18,1 mm
E: 20 mm
F: 12,3 mm
G: 29,2 mm
H: 52 mm
I: 7.6 mmОсобености
| 1 tourde cadran | 1 mm |
| Aflezing | 0-100 |
| Bereik | 5 mm |
| Bereik per omw. | 1 mm |
| Cale-mm | Metryczne |
| Campo | 5 mm |
| Campo di misura MPE | 12 µm |
| Campo/giro | 1 mm |
| Capacité | 5 mm |
| Capacité MPE | 12 µm |
| Chyba hystereze měření | 3 µm |
| Coll-mm | Metrikus |
| Contact point | Carbide tipped, thread M 2.5 x 0.45 mm |
| Continuous dial | Yes |
| Cyfrowy / analogowy | Analogowy |
| Děl. stup. | 0,01 |
| Digimatic/mécanique | Mécanique |
| Digitaal/Analoog | Analoog |
| Digital/Analog | Analog |
| Digitale / Analogico | Analogico |
| Digitális/Analóg | Analóg |
| Digitální/Analogové | Analogové |
| Doorlopende schaal | Ja |
| Dowolna 1/10obrotu | 5 µm |
| Dowolna 1/2obrotu | 9 µm |
| Dowolny 1obrót | 10 µm |
| Einspannschaft | 8 mm |
| Fixation | 8 mm |
| Folyamatos skála | Igen |
| Fonctions | ISO type |
| Force mesure | 0,4-2,5 N |
| Fortlaufende Skala | ja |
| Fortlöpande skala | Ja |
| Forza di misura | 0,4-2,5 N |
| Functies | ISO uitvoering |
| Functions | ISO type |
| Funkce | typ ISO |
| Funkciók | ISO type |
| Funkcje | Typ ISO |
| Funktionen | ISO Type |
| Funktioner | ISO typ |
| Funzioni | ISO |
| Gambo | 8 mm |
| Gewicht | 147 g |
| Godtyckligt 1 varv | 10 µm |
| Godtyckligt 1/10 varv | 5 µm |
| Godtyckligt 1/2 varv | 9 µm |
| Graduation | 0.01 |
| Graduaz. | 0,01 mm |
| Graduazione | 0,01 mm |
| H MPE (Errore di Isteresi) | 3 µm |
| H MPE (histereza) | 3 µm |
| H MPE (Hysteresis) | 3 µm |
| H MPE (Umkehrspanne) | 3 µm |
| H MPE (Vänd-språngsfel) | 3 µm |
| Hiszterézis hiba | 3 µm |
| Hmot. | 147 g |
| Inch-Metric | Metric |
| Inch-Metrisch | Metrisch |
| Inspänningsskaft | 8 mm |
| Ismételhetőség | 3 µm |
| Końcówka pomiarowa | Końcówka z węglika spiekanego, gwint M 2,5 x 0,45 mm |
| Lecture | 0-100 |
| Lecture continue | Oui |
| Libovolná 1 otáčka | 10 µm |
| Libovolná 1/10 otáčky | 5 µm |
| Libovolná 1/2 otáčky | 9 µm |
| Masa | 147 g |
| Mass | 147 g |
| Massa | 147 g |
| Maßstab | 0-100 |
| Mätspets | Hårdmetallbelagd, gänga M 2,5 x 0,45 mm |
| Mättryck | 0,4-2,5 |
| Measuring force | 0,4-2,5 |
| Meetkracht | 0,4-2,5 |
| mérési tartomány | 12 µm |
| Měřicí dotek | Osazené tvrdokovem, závit M 2,5 x 0,45 mm |
| Měřicí síla | 0,4-2,5 N |
| Mérőerő | 0,4-2,5 |
| Messbereich | 5 mm |
| Messbereich/U | 1 mm |
| Messeinsatz | Hartmetallbestückt, Gewinde M 2,5 x 0,45 mm |
| Messkraft | 0,4-2,5 N |
| Minden 1 fordulat | 10 µm |
| Minden 1/10fordulat | 5 µm |
| Minden 1/2 fordulat | 9 µm |
| MPE 1/10Umdrehung | 5 µm |
| MPE 1/2Umdrehung | 9 µm |
| MPE 1Umdrehung | 10 µm |
| MPE any 1/10revolution | 5 µm |
| MPE any 1/2revolution | 9 µm |
| MPE any 1revolution | 10 µm |
| MPE Elke 1/10omwenteling | 5 µm |
| MPE elke 1/2 omw. | 9 µm |
| MPE hele omw. | 10 µm |
| MPE Mätområde | 12 µm |
| MPE measuring range | 12 µm |
| MPE Messbereich | 12 µm |
| MPE ogni 1/10 di giro | 5 µm |
| MPE ogni 1 giro | 10 µm |
| MPE ogni 1/2 giro | 9 µm |
| MPE Omkeerfout | 3 µm |
| MPE over Meetbereik | 12 µm |
| MPE Reproduceerbaarheid | 3 µm |
| MPE rozsah měření | 12 µm |
| Nacisk pomiarowy | 0,4-2,5 N |
| Område (mm) | 5 mm |
| Område/1 varv | 1 mm |
| Osztás | 0,01 mm |
| Palcové-Metrické | Metrické |
| Podziałka | 0,01 |
| Poids | 147 g |
| Pollici - Metrici | Metrico |
| Průběžná stupnice | Ano |
| Punto di contatto | Metallo duro, filetto M 2,5 x 0,45 mm |
| R MPE (powtarzalność) | 3 µm |
| R MPE (Repeatability) | 3 µm |
| R MPE (Répétabilité) | 3 µm |
| R MPE (Ripetibilità) | 3 µm |
| R MPE (Wiederholpräzision) | 3 µm |
| R MPE Opakovatelnost | 3 µm |
| Range | 5 mm |
| Range per rev. | 1 mm |
| Repeternoggranhet | 3 µm |
| Révol. aléatoire 1 | 10 µm |
| Révol. aléatoire 1/10 | 5 µm |
| Révol. aléatoire 1/2 | 9 µm |
| Rozsah měření | 5 mm |
| Rozsah měření/ot. | 1 mm |
| Scala | 0-100 |
| Scala progressiva | Si |
| Scale | 0-100 |
| Schaalverdeling | 0,01 |
| Schacht | 8 mm |
| Schaft | 8 mm |
| Síklapúság | 0.01 |
| Skala | 0-100 |
| Skala / Liniał | 0-100 |
| Skala jednostronna | Tak |
| Skalenteilung | 0.01 |
| Skalenteilungswert | 0.01 |
| Stem | 8 mm |
| Stupnice | 0-100 |
| Szár | 8 mm |
| Tapintó | Carbide tipped, thread M 2,5 x 0,45 mm |
| Tartomány | 5 mm |
| Tartomány/ford | 1 mm |
| Tastpunt | Hardmetaal, schroefdraad M2,5 X 0,45 mm |
| Tastspitze | Hartmetallbestückt; Gewinde M 2.5 x 0.45 mm |
| Tömeg | 147 g |
| Touche de mesure | Carbure, filetage M 2,5 x 0,45 mm |
| Tuleja | 8 mm |
| Tum-Metrisk | Metrisk |
| Unité de mesure | Métrique |
| Upínací stopka | 8 mm |
| Upplösning | 0.01 |
| Vikt | 147 g |
| Zakres | 5 mm |
| Zakres pomiarowy | 12 µm |
| Zakresna obr. | 1 mm |
| Zoll/Metrisch | Metric |
| Контактный наконечник | Carbide tipped, thread M 2,5 x 0,45 mm |
| Стержень | 8 мм |
- Артикул: 2044A-60
-
